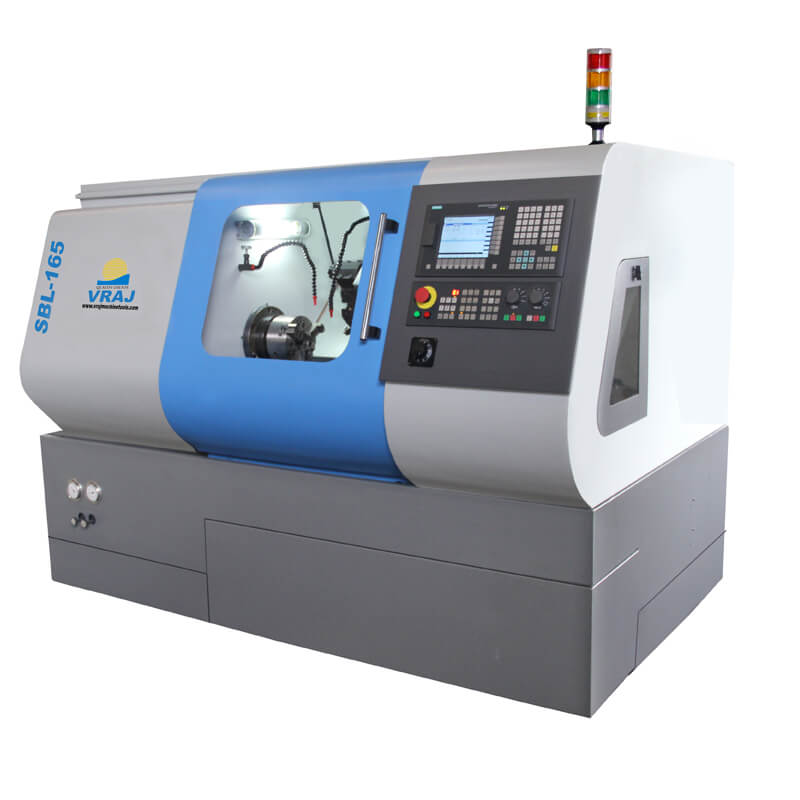

CNC TURNING MACHINE SBL-165
Key Features
- 45 Dig True Slant ( Single Piece ) graded casting Bed for Superior rigidity and strength
- Higher Productivity.
- Broad head stock base for batter performance.
- Bigger spindle ( Structure of A2-6 ) with A2-5 Tapper
- Bar feeding up to 40 mm round bar.
- Hydraulic turret for higher strength and stability
- Easy cheeps and coolant removal
- More scrap storage
- Higher Coolant force for better tool life
Specification
| Title | Description | Unit | Model SBL 165 SBL 165 LA | ||
|---|---|---|---|---|---|
| Capacity | Swing over bed | mm | 480 | ||
| Chuck dia | mm | 165 | |||
*Colet Chuck ( Optional)
| mm | 42 | |||
| mm | 36 | ||||
| mm | 29 | ||||
| Max. turning diameter | mm | 200 | |||
| Between Center Turning Dia | mm | 160 | |||
| Max. turning length | mm | 300 480 | |||
| Admit between centres | mm | 320 600 | |||
| Spindle | Spindle nose | type | A2-5 | ||
| Spindle Type | Cartridge type Spindle Angular contact bearing | ||||
| Hole through spindle | mm | 52 | |||
| Spindle Bearing Dial | mm | 80 | |||
| Spindle speed | rpm | 3000 | |||
| Spindle motor power | kw | 3.7 | |||
| Axis Detail | Cross travel X-axis | mm | 105 | ||
| Longitudinal travel Z-axis | mm | 320 520 | |||
Rapid traverse rate
| m/min | 10 | |||
| m/min | 20 | ||||
Ball Screw
| mm | 25 X 5 ( C3 Class ) | |||
| mm | 32 X 10 ( C3 Class ) | ||||
Rated Torque
| Nm | 6 Nm | |||
| Nm | 6 Nm | ||||
| Turret | No. of stations | nos. | 8 | ||
| Tool shank size | mm | 20 X 20 / 25 X 25 | |||
| Maximum boring bar dia. | mm | 32 / 40 | |||
| Turret indexing | type | Hydraulic | |||
| Tailstock | Quill dia | mm | 60 | ||
| Quill stroke | mm | 70 | |||
| Quill taper | - | MT-4 | |||
| Accuracy | Repeatability | mm | 0.005 | ||
| Positioning | mm | 0.008 | |||
| CNC system | Controller | - | Siemens 808 D Advance | ||
| Machine size | Front x Side x Height | mm | 2000 X 1450 X 1710 2200 X 1450 X 1710 | ||
| Machine Weight (Approx) | kg | 2200 2500 |
Standard Accessories
Optional Accessories
-  Coolant Supply Equipment
-  Foot Switch
-  Hand tool kit ( Including small tool for operations )
-  Hydraulic chuck and actuating cylinder
-  Hydraulic power unit
-  Levelling jack screw and plates
-  Lubrication equipment
-  Soft jaws & Hard jaw ( 1 pair )
Optional Accessories
-  Collet Chuck
-  Master Sleeve A32
-  Master Sleeve A42
-  Collets For Collet Chuck
-  Bar Feeder interface
-  Operating Door Inter Lock
-  Tail Stock
-  Tool Holders & Sleeves
-  Tower Lamp
-  Panel Ac
-  Siemens Servo Spindle 3.7 / 5 Kw
