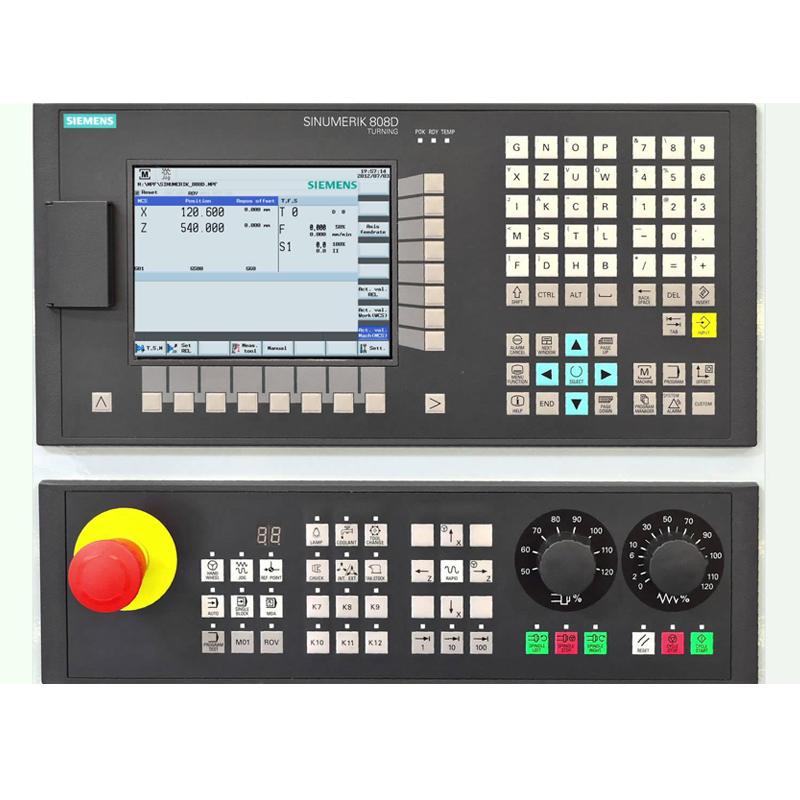

SIEMENS 808D

The Sinumerik 808D Turning is an operator-panel-based CNC tailored for use in modern basic standard turning machine.

Function

  • IP65 protection for CNC front panel and machine control panel
  • Integrated CNC keyboard with mechanical keys
  • Simplified Chinese or English panel layout
  • 7.5” color LCD display
  • USB user interface on the operator panel front
  • Pulse/direction interface for feed drives
  • Analog ± 10 V interface for spindle drive
  • Data buffering with battery (> 3 years)
  • Pre-configured system software for turning technologies
  • 1 machining channel/mode group
  • Up to 4 axes/spindles
  • Graphically guided SINUMERIK CNC programmingand standard ISO-code programming with canned cycles
  • Graphical CNC simulation
  • Integrated contour computer
  • Integrated PLC based on the SIMATIC S7-200command set with ladder logic programming
  • Integrated/distributed PLC I/O concept with 72 digital PLC inputs and 48 digital PLC outputs
  • CNC options subject to license
  • Configurable user screens
  • Machine maintenance tasks are accomplished byintegrated service planner



Benefits

  • Compact, rugged, and maintenance-friendly operator-panel CNC with dedicated system software for turning technologies
  • intelligent clamp mounting without drilling holes into the cabinet
  • minimum commissioning efforts due to plug and play machine control panel connected via USB interface
  • maximum performance and accuracy due to most modern CNC features
  • SINUMERIK 808D start GUIDE: assists all process steps of the machine-from engineering of production, from sales to operation and programming at the push of a button
  • SINUMERIK Operate Basic maximum operator convenience similar to SINUMERIK 828D and 840D sl
  • SINUMERIK program GUIDE BASIC: wide range of technology cycles for turning and drilling with graphical input screens
  • Manual Machine plus: easy semi-automatic machining with handwheel controlled flat-bed lathes
  • Easy data transmission via USB stick


Integration

The following components can be connected to the SINUMERIK 808D turning:

  • up to 2 electronic handwheels
  • up to 72 digital PLC inputs and 48 digital PLC outputs
  • 1 TTL direct spindle encoder
  • SINUMERIK 808D MCP via USB interface
  • SINAMICS V60 drive system for feed axes
  • Spindle drives via ± 10V analog output
  • PC via RS 232C interface
