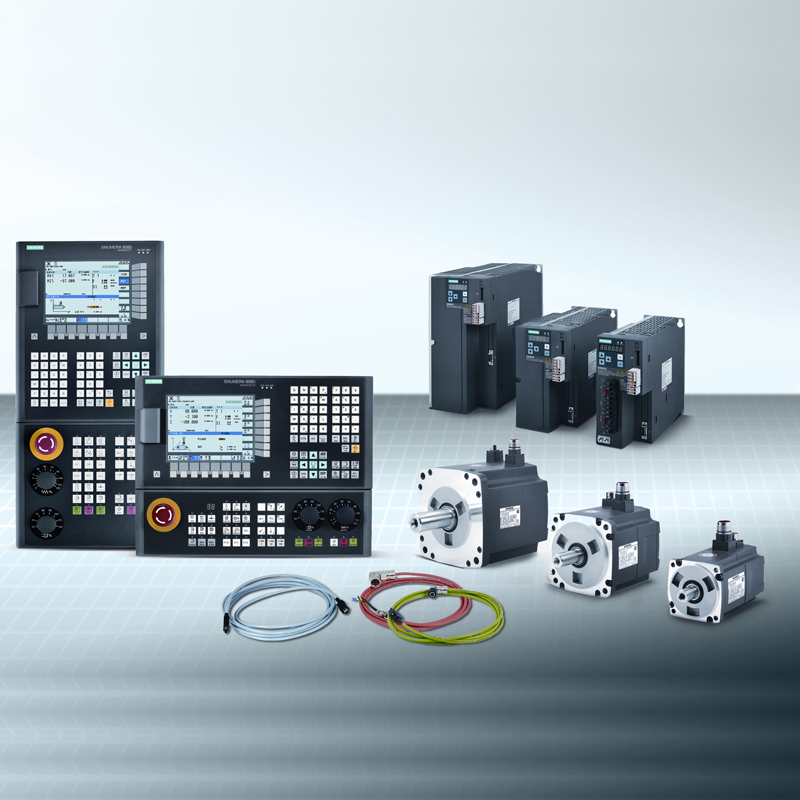

SIEMENS 808D ADVANCE
The Sinumerik 808D Turning T is an operator-panel-based CNC , preconfigured for use in modern basic standard turning machine.
Function
- 2 operator panel variants for horizontal and vertical operator panel housings.
- IP65 protection for CNC front panel and machine control panel
- Integrated CNC keyboard with mechanical keys
- Simplified Chinese or English panel layout
- 8.4†color LCD display
- USB user interface on the operator panel front
- Drive bus interface for feed drives and spindle
- Analog ± 10 V interface for spindle drive
- Data buffering without battery
- Pre-configured system software for turning technologies
- Up to 5 axes/spindles
- 1 machining channel/mode group
- Automatic servo tuning AST
- Ethernet interface for commissioning and data transfer
- Graphically guided SINUMERIK CNC programming and standard ISO-code programming with canned cycles
- Graphical CNC simulation
- Integrated contour computer
- Integrated PLC based on the SIMATIC S7-200 command set with ladder logic programming
- Integrated/distributed PLC I/O concept with 72 digital PLC inputs and 48 digital PLC outputs
- CNC options subject to license
- Configurable user screens
- Machine maintenance tasks are accomplished by integrated service planner
Benefits
- Compact, rugged, and maintenance-friendly operator-panel CNC with dedicated system software for turning technologies
- actual position feedback to CNC
- intelligent clamp mounting without drilling holes into the cabinet
- minimum commissioning efforts due to plug and play machine control panel connected via USB interface direct commisioning on HMI for feed drives and autometic servo tuning (AST)
- maximum performance and accuracy due to most modern CNC features
- SINUMERIK 808D start GUIDE: assists all process steps of the machine-from engineering of production, from sales to operation and programming at the push of a button
- SINUMERIK Operate Basic maximum operator convenience similar to SINUMERIK 828D and 840D sl
- SINUMERIK program GUIDE BASIC: wide range of technology cycles for turning and drilling with graphical input screens
- Manual Machine plus: easy semi-automatic machining with handwheel controlled flat-bed lathes
- Fast data transmission via USB stick high speed Ethernet interface
- More software options can cover more applications and enhance the machine performance
