Function

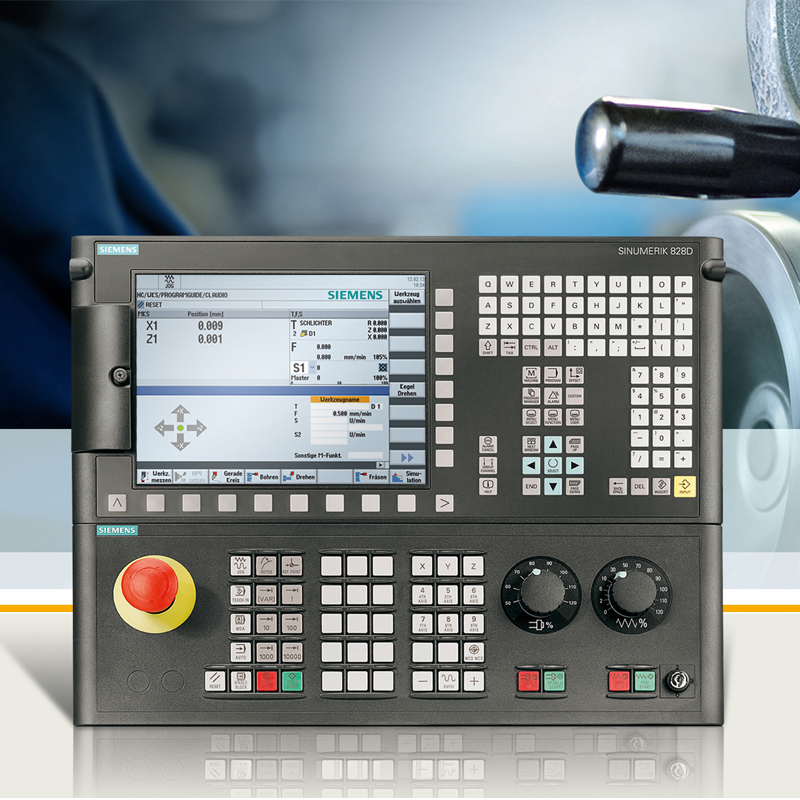

• Operator-panel CNC with dedicated system software variantsfor turning, milling and grinding technologies


• G-Tech is a grinding package with an extensive scope of CNCfunctions ranging from the low-cost entry-level model up tohighly productive machines
• Operator panel variants for horizontal and vertical operatorpanel housings

• Integrated QWERTY full CNC keyboard with short-stroke keys
• CompactFlash card, USB and Ethernet interfaces on theoperator panel front
• Additional Ethernet interface on rear of CNC for connection tofactory network

• Integrated PLC based on the SIMATIC S7-200 command setwith ladder logic programming
• I/O interface based on PROFINET for the connection of PLCI/O devices and a machine control panel
• Connection of a GSM/GPRS modem: Easy Message (option)
• Integrated PLC editor in SINUMERIK Operate makes itpossible to edit the PLC program quickly without any additional PC tools
• CNC options subject to license
• Up to 6 axes/spindles
• Up to 8 axes/spindles with PPU 280.3/PPU 281.3 andSINAMICS NX10.3
• Up to 10 axes/spindles with PPU 280.3/PPU 281.3 andSINAMICS NX15.3 for Turning advanced and G-Tech advanced
• 1 analog spindle

• 1 machining channel, 2 machining channels with PPU 280.3/PPU 281.3 forTurning advanced (basic scope) and G-Tech advanced
• 1 mode group,2 mode groups with PPU 280.3/PPU 281.3 forTurning advanced
• EES function – unlimited expansion of CNC memory
• Integrated tool management with tool life monitoring

• Graphical machining step programming ShopTurn/ShopMill(option)
• Top Surface


• User interface SINUMERIK Operate – same look and feel asSINUMERIK 840D sl

• Configurable user screens withSINUMERIK Integrate for engineering Run MyScreens
